Our aluminum wheels have been developed with a specific mission ? “Improving the lapping time in the racetracks.”. A forged single piece structure was chosen with the consideration of possible use in Super-TAIKYU race. In designing the wheel, we decided to use the twin spoke founded on the 6 spoke design which is very much standard in the racing scenes. By studying the faces and the lines of the wheel thoroughly in detail, we have created the design well-suited for both street and racetrack. All the following advanced forging technologies and unique standard of the RAYS Corporation have been adopted. “10,000 ton Forging”, “Molding form. Forged”, “RM8000”, and “JWL+R” whose strength standard surpasses JWL. We can proudly say we have achieved “Super high performance with ultra lightweight” which all the aftermarket performance wheels are seeking for.

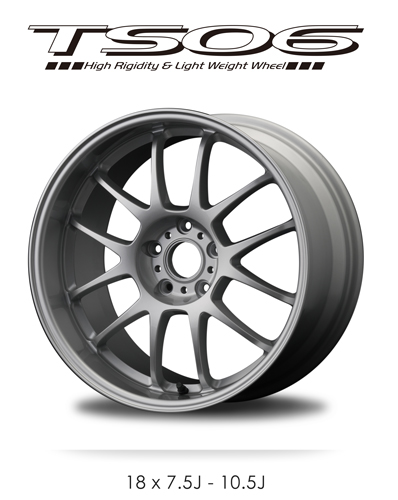

ings SPORTS TS06



Specification: One Piece Forged
Color: Chrome silver [CR]
Gun metallic [GM]
Gold [GD]
(Only the size for the Subaru car partially)

- Please see here about each color image.
Accessory: Valve
(European type/aluminum valve/RAYS stamp)
Rim sticker
TS06 マッチングリスト



CENTER CAP (Optional)

TS06専用センターキャップ ロータイプ TS06専用センターキャップ ハイタイプ TS06
OPTIONAL PARTS

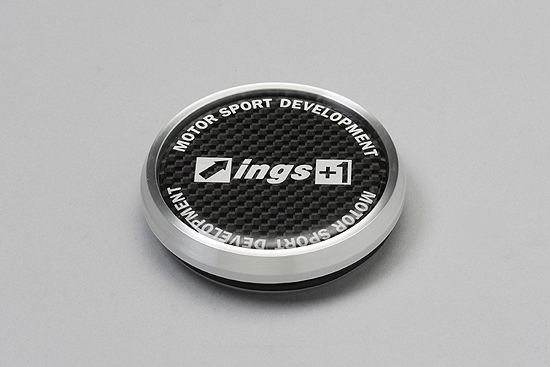

CENTER CAP
LOW TYPE
OPTIONAL PARTS

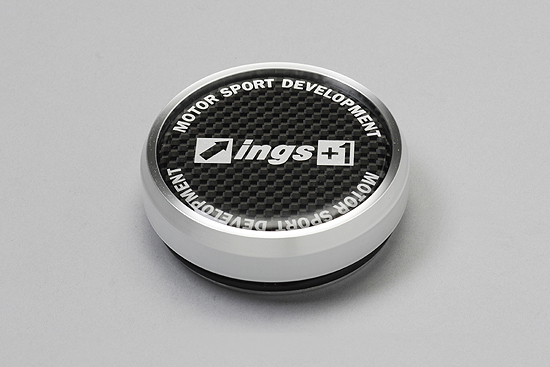

CENTER CAP
HIGH TYPE
CENTER CAP
LOW TYPE
Installation example
TS06 Color:クロムシルバー[CR]

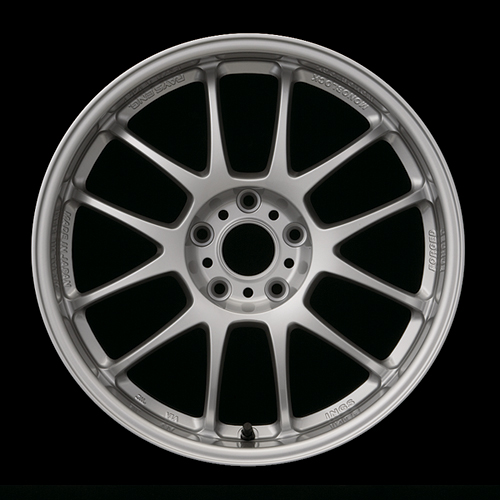

TS06

Color:chrome silver[CR]

TS06 Color:ガンメタリック[GM]

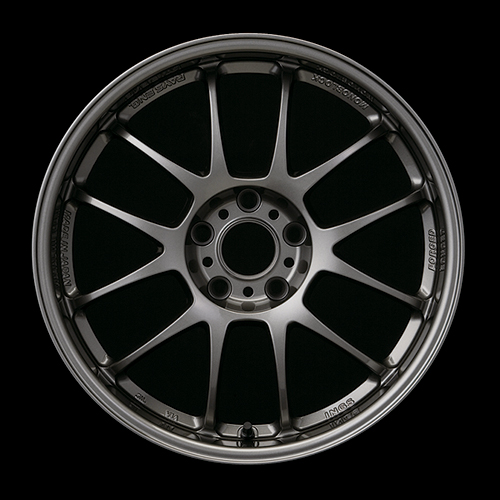

TS06

Color:gun metalic[GM]

TS06 Color:ゴールド[GD]

TS06

Color:gold[GD] (Only the size for the Subaru car partially)

TS06 リム部拡大イメージ

extended image

「INGS」engraved





  • photo

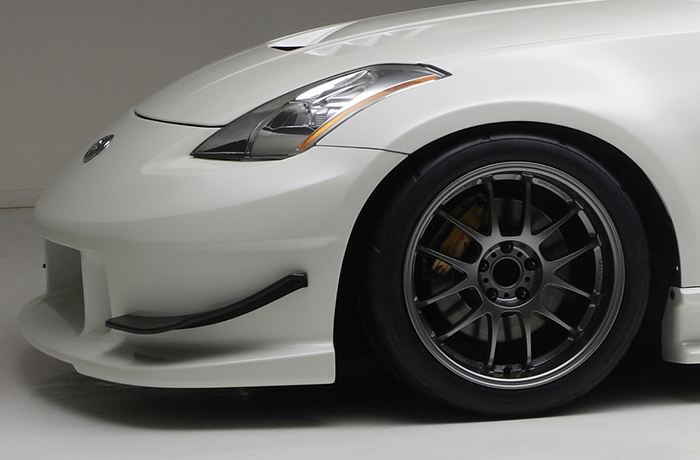

    FAIRLADY Z
    Color:GM
  • photo

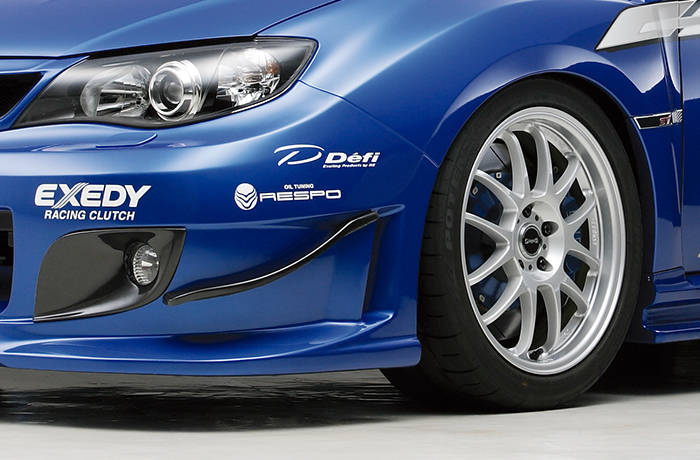

    IMPREZA GRB
    Color:CR
  • photo

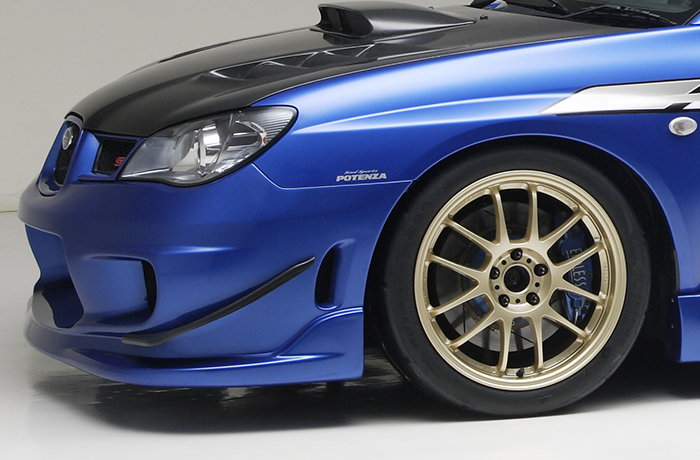

    IMPREZA GDB
    Color:GD
  • photo

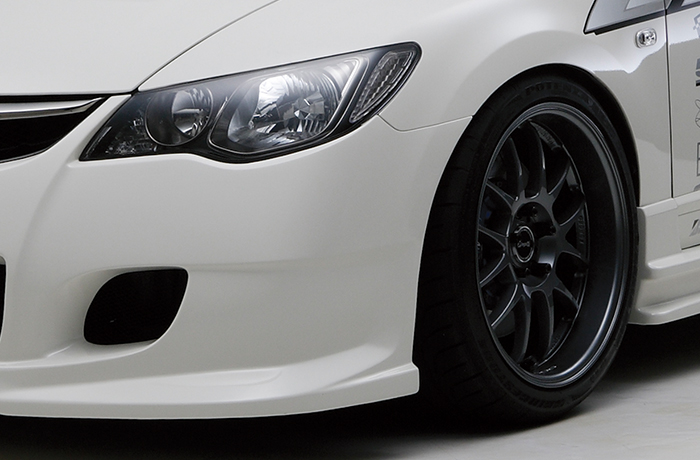

    CIVIC TYPE-R
    Color:GM
  • photo

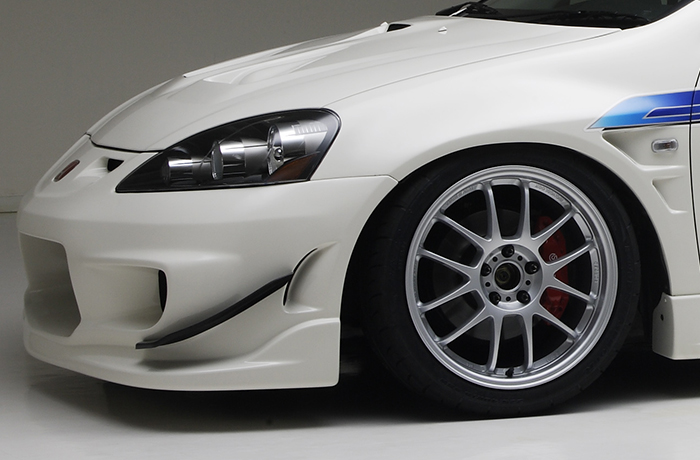

    INTEGRA TYPE-R
    Color:CR
  • photo

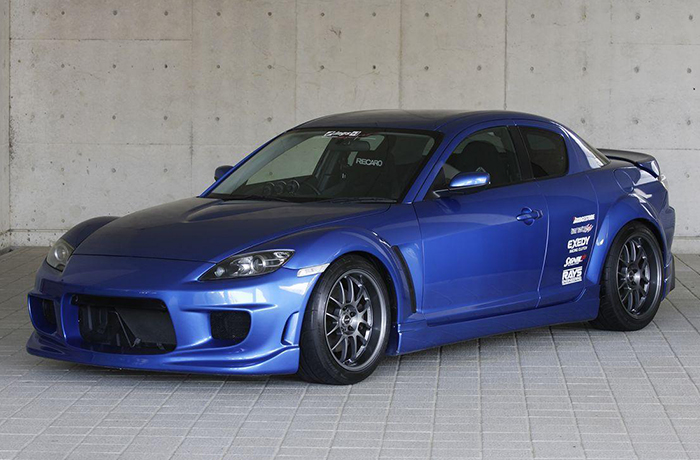

    RX-8
    Color:GM





価格





SIZE INSET HOLE P.C.D COLOR WEIGHT

18 x 71/2J

43 5 100 CR / GM / GD
7.85 kg
48 100
7.70 kg
43 114.3
7.75 kg
48 114.3
7.60 kg

18 x 8J

38 5 100 CR / GM / GD
8.10 kg
43 100
8.05 kg
38 114.3
8.05 kg
43 114.3
7.90 kg

18 x 81/2J

43 5 100 CR / GM / GD
Unmeasurement
22 114.3 CR / GM
8.25 kg
30 114.3 CR / GM
8.35 kg
38 114.3 CR / GM
8.30 kg
43 114.3 CR / GM / GD
8.15 kg

18 x 9J

35 5 114.3 CR / GM
Unmeasurement
50

18 x 91/2J

12 5 114.3 CR / GM
8.55 kg
22
8.45 kg
34
8.35 kg
40
8.25 kg

18 x 101/2J

15 5 114.3 CR / GM
9.00 kg
22
8.85 kg
  LOW HIGH

CENTRAL CAP

※TS06



  1. Central Cap may not be available depending on car types.
    Please inquire about the adjustment to the car.
